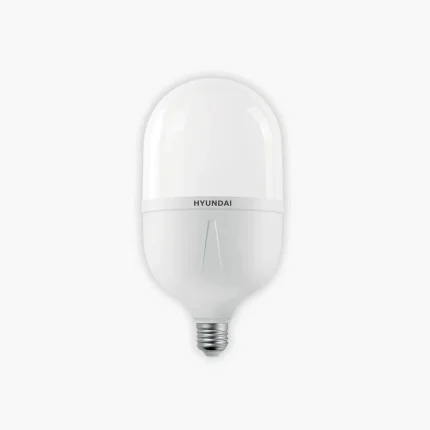

- Energy-efficient 35W LED bulb with bright, long-lasting illumination
- Delivers high lumen output while consuming less power
- Durable design with heat-resistant housing for longer lifespan
- Ideal for home, office, and commercial lighting applications

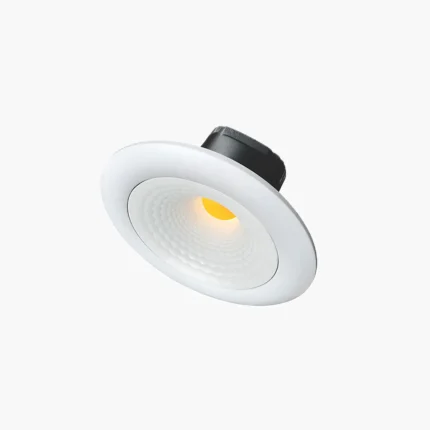

Hyundai LED COB Spot Light 12W (HL4CB12N2-C) PF 0.9

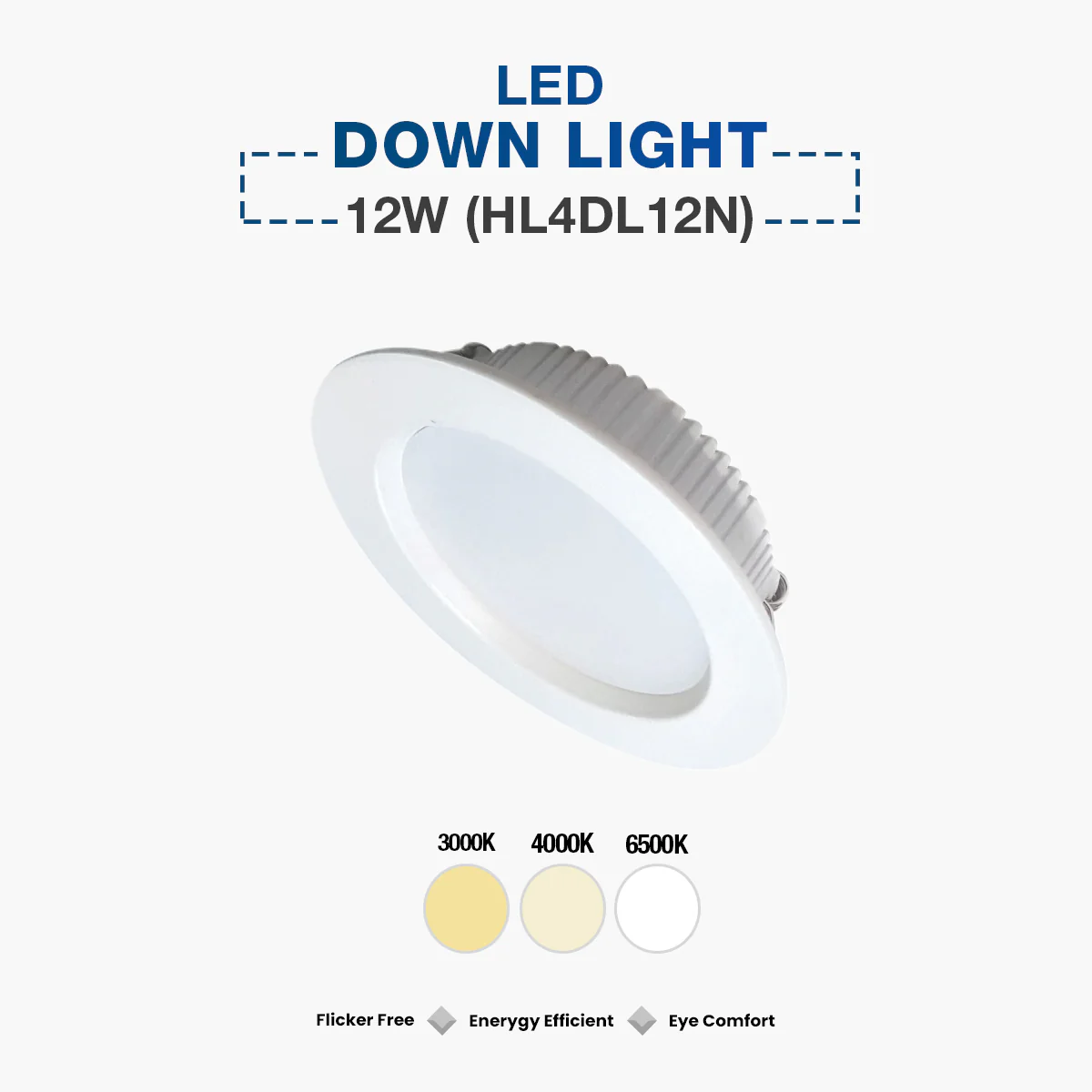

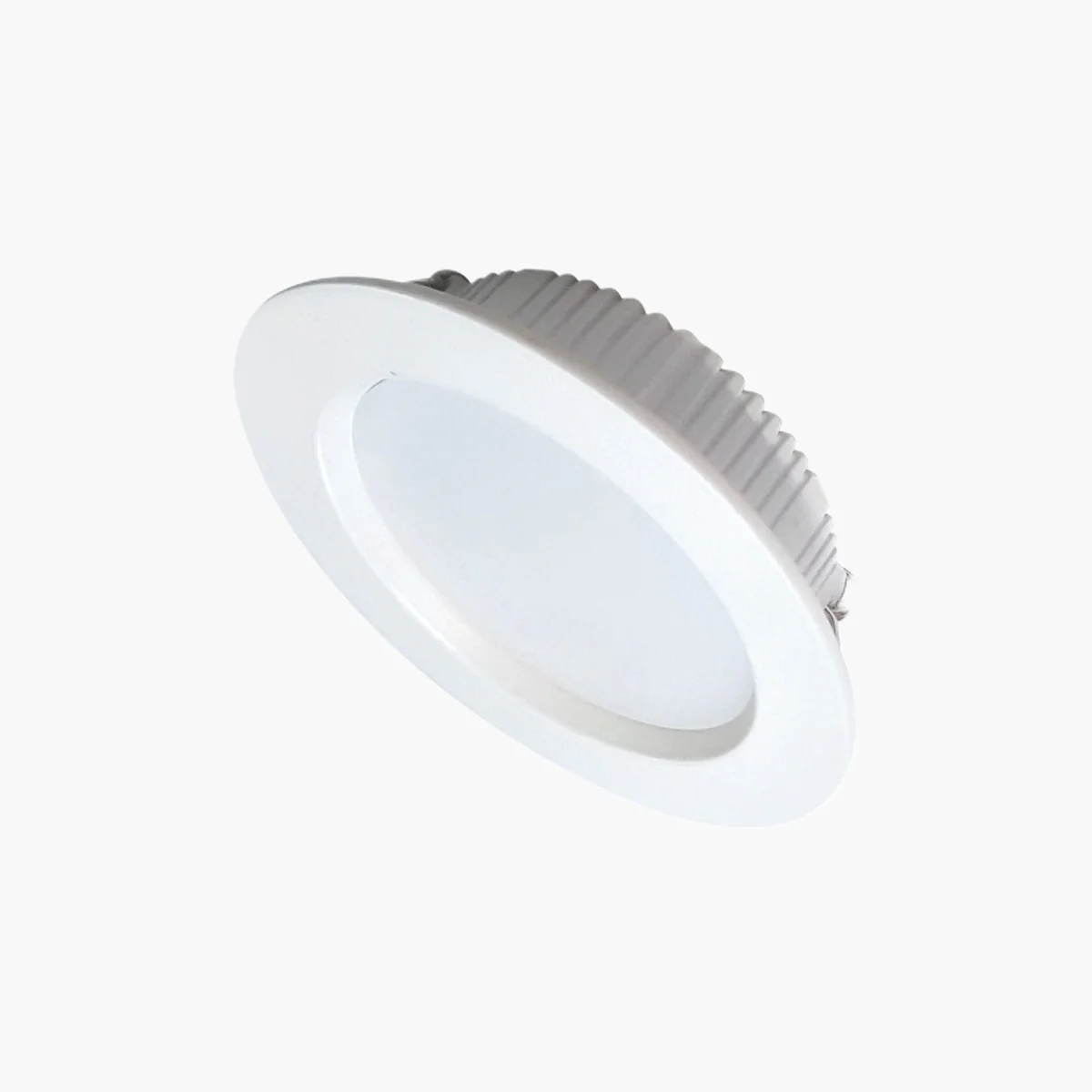

The Hyundai HL4DL12N is a versatile 12W SMD LED down light that provides wide-angle 120° illumination with an output of 840-960 lumens. Featuring a sleek die-cast aluminium construction for optimal heat dissipation, this down light offers energy savings up to 88% and a lifespan of 25,000 hours. Available in three color temperatures (3000K Warm White, 4000K Natural White, 6500K Cool White), it’s perfect for various indoor applications including recessed lighting, offices, and commercial spaces. With flicker-free operation and 18-month warranty, it’s an ideal lighting solution for modern environments.
Categories: Down Light, Indoor Lighting
Specifications
Specifications
Full Specifications
Feature Specification
Model HL4DL12N
Power Consumption 12W
LED Type SMD (Surface-Mounted Device)
Luminous Flux 840/900/960 Lumens
Color Temperature 3000K (Warm White)
4000K (Natural White)
6500K (Cool White) ±200K
Beam Angle 120°
Input Voltage 100V-240V AC, 50/60 Hz
CRI ≥ 80
Working Temperature -20°C to +40°C
Operating Humidity 10% – 90%
Material Die-Cast Aluminium
Approx. Weight 158 grams
Rated Lifespan 25,000 hours (L70 @ Tj=85°C)
Warranty 18 Months
Description
Description
The Hyundai HL4DL12N LED SMD Down Light represents a significant advancement in modern lighting technology, designed to provide efficient, wide-angle illumination for contemporary residential and commercial spaces. This sophisticated 12W down light utilizes advanced SMD (Surface-Mounted Device) LED technology to deliver brilliant, uniform lighting with an extensive 120-degree beam angle, ensuring broad coverage and eliminating dark spots in any environment.
Engineered with precision and durability in mind, the HL4DL12N features a high-quality die-cast aluminium body that serves dual purposes: providing structural integrity and acting as an efficient heat sink to dissipate thermal energy away from the LED components. This advanced thermal management system is crucial for maintaining optimal performance and extending the product’s 25,000-hour operational lifespan, significantly reducing maintenance and replacement costs over time.
The down light offers exceptional versatility with three carefully calibrated color temperature options to suit various applications and atmospheres. The 3000K Warm White creates a cozy, inviting ambiance perfect for residential spaces and hospitality environments; the 4000K Natural White provides balanced, neutral illumination ideal for offices and workspaces; while the 6500K Cool White delivers crisp, vibrant light suitable for commercial areas and task-oriented environments. With a Color Rendering Index (CRI) of ≥80, it ensures accurate color representation, making spaces appear more natural and vibrant.
Hyundai’s solid-state LED technology ensures instant start-up with full brightness achieved immediately, eliminating the warm-up time associated with traditional lighting. The energy-efficient design consumes up to 88% less electricity than conventional incandescent or halogen alternatives, resulting in substantial cost savings while maintaining excellent light output of 840-960 lumens. The flicker-free operation provides comfortable, eye-friendly illumination that reduces strain in spaces where people work or spend extended periods.
As an environmentally conscious choice, the HL4DL12N is completely free of mercury and lead, making it safer for both users and the environment. Its low heat emission not only enhances safety but also contributes to reduced air conditioning costs in climate-controlled spaces. Backed by Hyundai’s reputation for quality and an 18-month warranty, this down light offers reliable performance and peace of mind for various lighting applications.
Key Features
-
Wide-Angle Illumination: 120° beam angle for extensive, uniform light distribution
-
Advanced SMD Technology:Â High-efficiency SMD LEDs for consistent, reliable performance
-
Superior Thermal Management:Â Die-cast aluminium construction for optimal heat dissipation
-
Energy Efficient:Â Up to 88% energy savings compared to traditional lighting
-
Long Operational Life:Â 25,000-hour lifespan reduces maintenance costs
-
Versatile Color Options:Â 3000K (Warm White), 4000K (Natural White), 6500K (Cool White)
-
Instant Start Technology:Â Immediate full brightness without warm-up delay
-
Eco-Friendly Design:Â Mercury-free and lead-free construction
-
Flicker-Free Operation:Â Comfortable, strain-free illumination
-
Quality Assurance:Â 18-month comprehensive warranty
Warranty
Warranty
18 Months Replacement Warranty

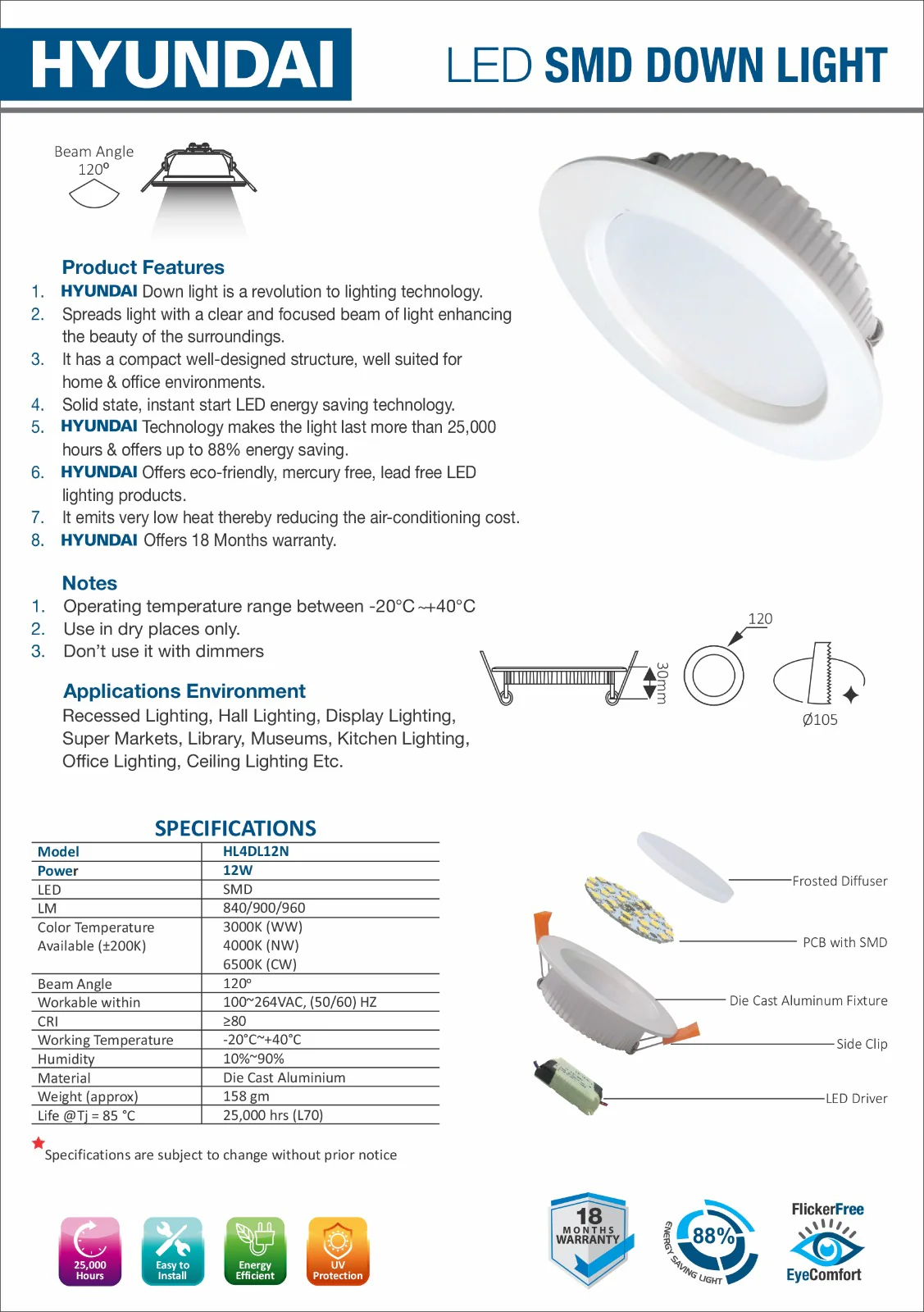

DataSheet
DataSheet

Related products

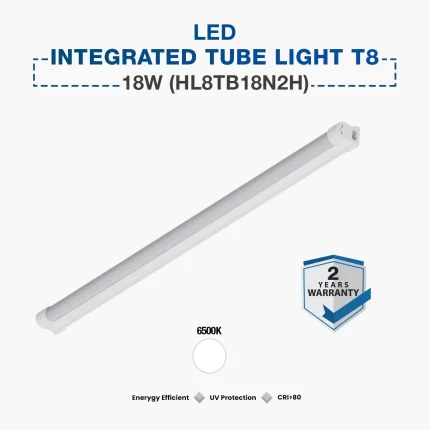

Hyundai LED Integrated Tube Light T8 18W (HL8TB18N2N)
The Hyundai HL8TB18N2H is a high-efficiency 18W T8 LED integrated tube light designed as a direct replacement for traditional fluorescent tubes. Featuring a frosted PC cover that delivers 1980 lumens of uniform, glare-free light with a 130° beam angle, this tube light offers exceptional energy savings up to 88%. With three color temperature options (3000K, 4000K, 6500K), advanced thermal management, and a 30,000-hour lifespan, it's perfect for commercial, industrial, and institutional applications. Backed by a 2-year warranty, it provides reliable, maintenance-free illumination for various environments.
Hyundai Backlit Panel Light 36W (HLSBP36N)
The Hyundai HLSBP36N is a premium 36W LED backlit panel light designed as an energy-efficient replacement for conventional fluorescent fixtures. Delivering 3240-3888 lumens with an ultra-wide 150° beam angle, this panel light features a sleek design with iron base, aluminium frame, and PS diffuser for uniform illumination. With a remarkable 50,000-hour lifespan, ≥0.9 power factor, and up to 88% energy savings, it's ideal for modern office lighting, meeting rooms, and commercial spaces. Available in three color temperatures and optional dimming, it comes with a comprehensive 2-year replacement and 1-year service warranty.

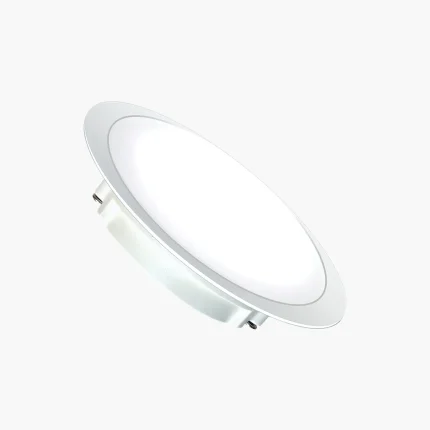

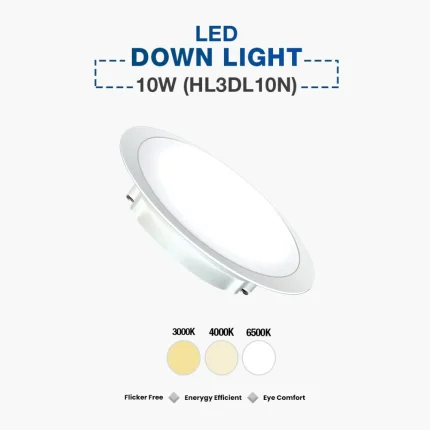

Hyundai LED Down Light 10W (HL3DL10N)
The Hyundai HLBL20N is a high-efficiency 20W LED bulb designed as a perfect replacement for traditional incandescent and CFL bulbs. Featuring an ultra-wide 270° beam angle for uniform light distribution, it delivers 1700-1900 lumens with excellent energy savings of up to 88%. Available in both Warm White (3000K) and Cool White (6500K) options, this bulb is ideal for various indoor applications including desk lamps, ceiling lights, and wall lighting. Built with durable PBT and aluminium casing for superior heat dissipation and backed by an 18-month warranty, it offers reliable performance with a lifespan of 25,000 hours.
Hyundai LED COB Spot Light 6W (HL3CB6N2-C) PF 0.9
The Hyundai HL3CB6N2-C is a high-performance 6W COB LED spot light featuring advanced technology with superior power factor (≥0.9) and an extended 50,000-hour lifespan. Delivering bright, focused illumination of 420-480 lumens with a 60° beam angle, this spot light is perfect for accent and display lighting in various settings. Available in three color temperatures (3000K, 4000K, 6500K), it combines energy efficiency with exceptional durability thanks to its die-cast aluminium construction. Backed by an impressive 2-year replacement warranty, this eco-friendly, flicker-free light is ideal for both residential and commercial applications.
Hyundai LED COB Spot Light 6W (HL3CB6N)
The Hyundai HL3CB6N is a premium 6W COB (Chip-on-Board) LED spot light designed for focused, high-quality illumination. Featuring a narrow 45° beam angle, it delivers a clear and concentrated light beam perfect for accent and display lighting. With a versatile color temperature range (Warm White to Cool White) and a brightness output of 360-420 lumens, this light is ideal for enhancing aesthetics in homes, offices, and commercial spaces like museums and supermarkets. Built with a durable die-cast aluminium base and PC top ring for efficient heat management, it offers a long lifespan of 25,000 hours and comes with a 12-month warranty.

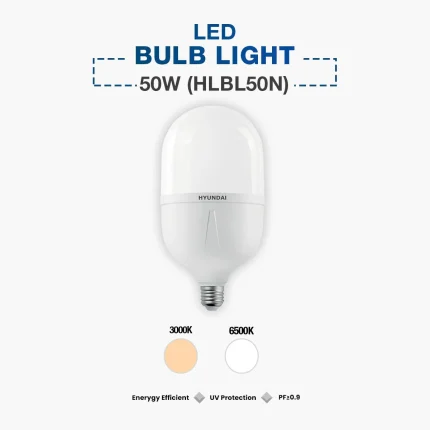

Hyundai LED Bulb Light 50W (HLBL50N)
